SM series safety floor mats

characteristic：◆Redundantdesign,safeandreliable,caneffectivelydetectshortandopencircuitsingroundmatsignalcables；◆Excellentperformanceinimpactresistance,wheelrollingresistance,andresistancetocorrosionf...

product

characteristic：

◆Redundant design, safe and reliable, can effectively detect short and open circuits in ground mat signal cables；

◆Excellent performance in impact resistance, wheel rolling resistance, and resistance to corrosion from various acids, alkalis, salts, and other chemical substances；

◆Equipped with a dedicated controller, capable of splicing up to 10m2；

◆Multiple specifications are available for selection, and can also be customized into various special shapes；

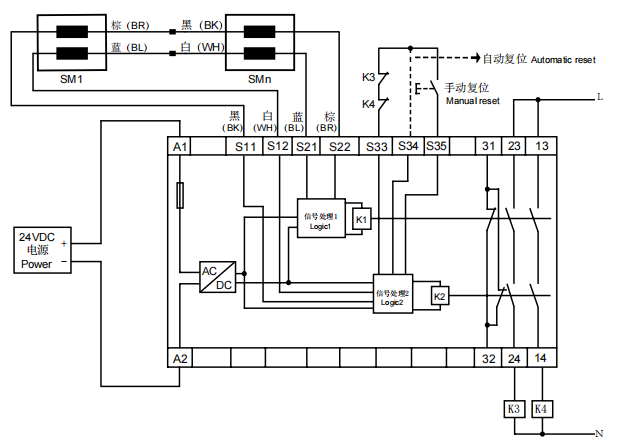

◆Comply with the requirements of EN1760-1 standard and safety control SM3P2A1B24?Combined use，Meet EN ISO 13849?Performance level PL d。

Floor mat parameters:

series	G-series	h series
thickness	15mm	20mm
quality	21 Kg/m2	28 Kg/m2
Maximum withstand pressure	2,000N(useφ80mmTest piece)	8,000N(useφ80mmTest piece)
Operating force?	≥200N	≥300N
material quality	PVC（polyvinyl chloride）	NBR,CR (rubber）
mechanical life	>100one million time	>300one million time
Operating ambient temperature	-20~+55℃	-30~+65℃
size	Special customization with an area greater than 1.5m2 or a single side length greater than 3m
invalid region	Cable leading-out edge≤20mm，Non cable outlet edge ≤10mm
Length	5m
Standards	EN1760-1
protection grade	IP65
Anti slip grade	?R9

Controller parameters:

model	SM3P2A1B24
INPUT VOLTAGE?	24V DC
security level	PL d
voltage tolerance	±10%
operation temperature	-10~+55℃
storage temperature	-40~+85℃
consumption	<3W
protection grade	IP50
Output	2NO+1NC
Maximum switching capacity?	AC-15,5A/250? DC-13,6A/24V
Anti interference level	IEC61131-3
Contact fuse protection	5AT or 6AF
Voltage withstand level	AC 1890V 50/60Hz 1min
response time	<30ms
Wire cross-sectional area	0.2 - 2.5mm2
Standards	EN ISO 13849-1, EN1760-2，EN 61000-6-2, EN 61000-6-3
Torque setting of the terminal	0.5Nm
size	96(L)×22.5(W)×116(H)mm
Vibration requirements	EN 60068-2-6?
Environmental compliance	EN 60068-2-78

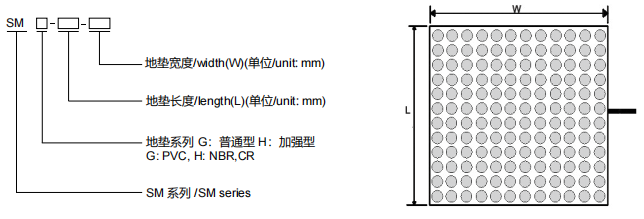

Model description:

Selection Table:

model	Overall dimensions(mm)
model	long（L）	wide（W）
SMG/H-300-300	300	300
SMG/H-400-400	400	400
SMG/H-500-250	500	250
SMG/H-500-400	500	400
SMG/H-500-500	500	500
SMG/H-600-400	600	400
SMG/H-750-250	750	250
SMG/H-750-500	750	500
SMG/H-750-750	750	750
SMG/H-1000-250	1000	250
SMG/H-1000-500	1000	500
SMG/H-1000-750	1000	750
SMG/H-1000-1000	1000	1000
SMG/H-1500-500	1500	500
SMG/H-1500-750	1500	750
SMG/H-1500-1000	1500	1000

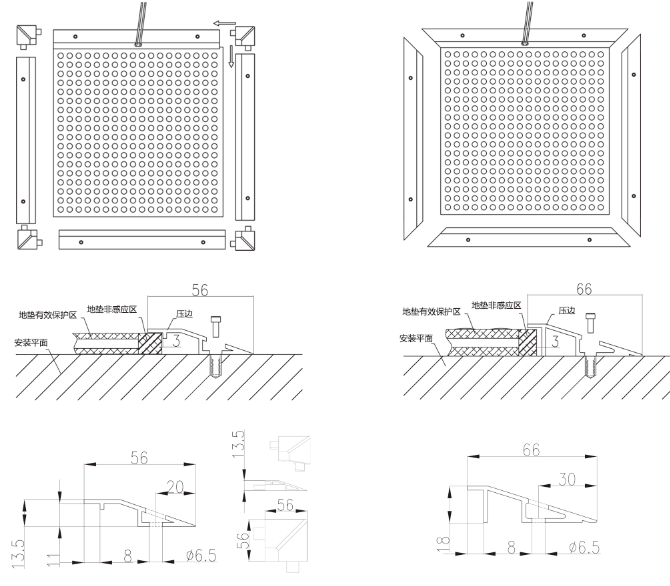

install：
